Hot melt spraying syste

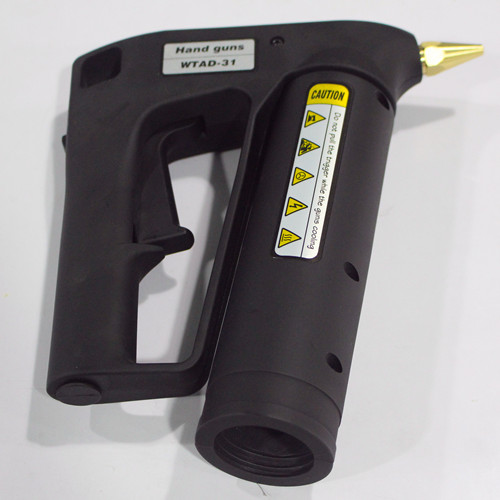

AD-31 Hand spray gun (spiral)

model :WT AD-31、AD-31S

The manual hand screw gun is flexible and applies to simple artificial sizing.

features:

Walter manual screw gun features:
1 、 flexible operation application, suitable for simple sizing and laminating;
2, can provide aperture different specifications of nozzles, solve manual spraying evenly;
3, according to the product requirements, flexibility to adjust the spraying position, widely used in packaging, composite, stickers, etc..
  • details
  • parameters

Walter manual spray gun characteristics:

◆Manual hands are compact、lightweight hands that offer a wide range of pattern capabilities. These durable s combine efficient design and reliable performance for manually dispensing hot melt adhesives sealanrs and other thermoplastic materials.

◆A 360 swivel connector eliminates hose twisting.
◆RTD sensor offer precise temperature control.
◆Impact-resistant molded shell extends service life.
◆Cool handle for comfortable operation.
◆Operational Temperature:105-230℃;  Working Hydraulic Pressure:1200PCS;  Electrical Service:220V 50Hz.
◆Spray can was linear, point-like, spiral, mist.
◆Apply to carton (box) packaging, lights, car interior, furniture assembly, air conditioning / refrigerator assembly, non-woven adhesive products, such as cooperation on trade manually.
Ordinal name - model specification parameter value
1 working temperature is 80 to 230 DEG C (160 to 500 degrees Fahrenheit)
2 working frequency 60 times / min
3 hot melt adhesive viscosity 500~30000 pis
4 temperature sensor type PT100, NI120, thermocouple class
5 solenoid valve control pressure 1 ~ 6.5bar, need to use oil removal compressed air
